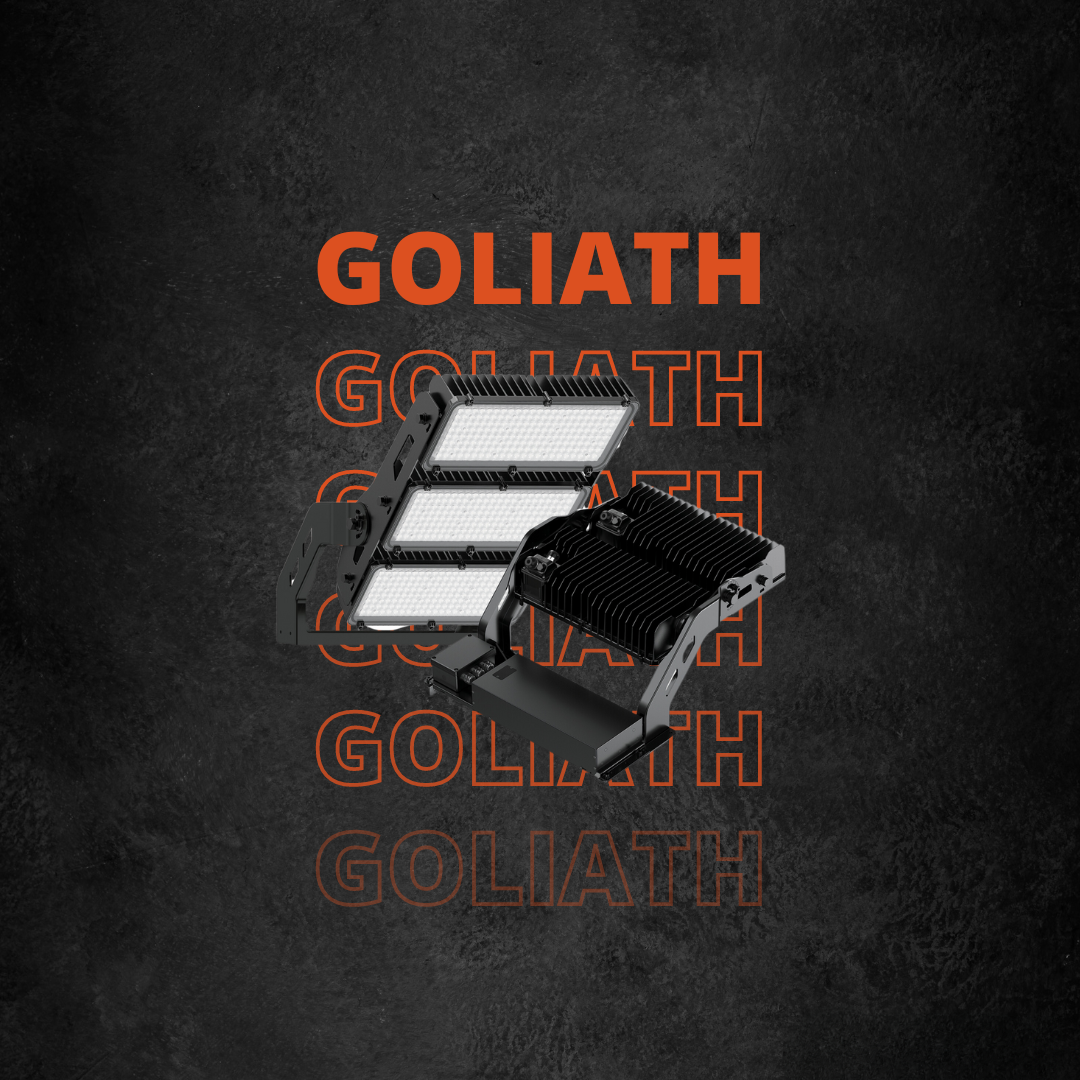

The Goliath LED floodlight is our most powerful luminaire. Perfect for large outdoor areas, it will provide optimal lighting for your sports activities. Equipped with a 600W LED module with a luminous efficacy of 140lm/W, it will eliminate any shadows and guarantee uniform lighting and ideal visual comfort.
| Typical reference | GOLxxx | Materials | Aluminum / Polycarbonate / Tempered glass |
| Light efficiency | 140 lm/W | LED type | SMD |
| Color temperature | 5 000k (3 000K, 4 000K optional) | Driver | Direct Current |
| Color rendering Ra | Ra > 80 | Dimmable | 1-10V / DALI / DMX |
| Voltage / Frequency | AC220-240V / 50-60Hz | Maximum dimming | from 100 to 10% |
| Power Factor | 0.95 | Optical type | Symmetrical and Asymmetrical |
| UGR | UGR < 22 | Adapt for TV | Flicker Free Driver |
| Biological Risk | RG1 | Color Projector | Black |
| ULR | < 3% | Standards | IP66 / IK10 / CE / RoHS / ENEC |
| Harmonic Distortion | < 20% | Warranty | 5 years |
The Goliath LED floodlight is our most powerful luminaire. Perfect for large outdoor areas, it will provide optimal lighting for your sports activities. Equipped with two 480W LED modules with a luminous efficacy of 140lm/W, it will eliminate any shadows and guarantee uniform lighting and ideal visual comfort.
| Typical reference | GOLxxx | Materials | Aluminum / Polycarbonate / Tempered glass |
| Light efficiency | 140 lm/W | LED type | SMD |
| Color temperature | 5 000k (3 000K, 4 000K optional) | Driver | Direct Current |
| Color rendering Ra | Ra > 80 | Dimmable | 1-10V / DALI / DMX |
| Voltage / Frequency | AC220-240V / 50-60Hz | Maximum dimming | from 100 to 10% |
| Power Factor | 0.95 | Optical type | Symmetrical and Asymmetrical |
| UGR | UGR < 22 | Adapt for TV | Flicker Free Driver |
| Biological Risk | RG1 | Color Projector | Black |
| ULR | < 3% | Standards | IP66 / IK10 / CE / RoHS / ENEC |
| Harmonic Distortion | < 20% | Warranty | 5 years |
The Goliath LED floodlight is our most powerful luminaire. Perfect for large outdoor areas, it will provide optimal lighting for your sports activities. Equipped with two 600W LED modules with a luminous efficacy of 140lm/W, it will eliminate any shadows and guarantee uniform lighting and ideal visual comfort.
| Typical reference | GOLxxx | Materials | Aluminum / Polycarbonate / Tempered glass |
| Light efficiency | 140 lm/W | LED type | SMD |
| Color temperature | 5 000k (3 000K, 4 000K optional) | Driver | Direct Current |
| Color rendering Ra | Ra > 80 | Dimmable | 1-10V / DALI / DMX |
| Voltage / Frequency | AC220-240V / 50-60Hz | Maximum dimming | from 100 to 10% |
| Power Factor | 0.95 | Optical type | Symmetrical and Asymmetrical |
| UGR | UGR < 22 | Adapt for TV | Flicker Free Driver |
| Biological Risk | RG1 | Color Projector | Black |
| ULR | < 3% | Standards | IP66 / IK10 / CE / RoHS / ENEC |
| Harmonic Distortion | < 20% | Warranty | 5 years |
The Goliath LED floodlight is our most powerful luminaire. Perfect for large outdoor areas, it will provide optimal lighting for your sports activities. Equipped with three 500W LED modules with a luminous efficacy of 140lm/W, it will eliminate any shadows and guarantee uniform lighting and ideal visual comfort.
| Typical reference | GOLxxx | Materials | Aluminum / Polycarbonate / Tempered glass |
| Light efficiency | 140 lm/W | LED type | SMD |
| Color temperature | 5 000k (3 000K, 4 000K optional) | Driver | Direct Current |
| Color rendering Ra | Ra > 80 | Dimmable | 1-10V / DALI / DMX |
| Voltage / Frequency | AC220-240V / 50-60Hz | Maximum dimming | from 100 to 10% |
| Power Factor | 0.95 | Optical type | Symmetrical and Asymmetrical |
| UGR | UGR < 22 | Adapt for TV | Flicker Free Driver |
| Biological Risk | RG1 | Color Projector | Black |
| ULR | < 3% | Standards | IP66 / IK10 / CE / RoHS / ENEC |
| Harmonic Distortion | < 20% | Warranty | 5 years |
The Goliath LED floodlight is our most powerful luminaire. Perfect for large outdoor areas, it will provide optimal lighting for your sports activities. Equipped with three 600W LED modules with a luminous efficacy of 140lm/W, it will eliminate any shadows and guarantee uniform lighting and ideal visual comfort.
| Typical reference | GOLxxx | Materials | Aluminum / Polycarbonate / Tempered glass |
| Light efficiency | 140 lm/W | LED type | SMD |
| Color temperature | 5 000k (3 000K, 4 000K optional) | Driver | Direct Current |
| Color rendering Ra | Ra > 80 | Dimmable | 1-10V / DALI / DMX |
| Voltage / Frequency | AC220-240V / 50-60Hz | Maximum dimming | from 100 to 10% |
| Power Factor | 0.95 | Optical type | Symmetrical and Asymmetrical |
| UGR | UGR < 22 | Adapt for TV | Flicker Free Driver |
| Biological Risk | RG1 | Color Projector | Black |
| ULR | < 3% | Standards | IP66 / IK10 / CE / RoHS / ENEC |
| Harmonic Distortion | < 20% | Warranty | 5 years |
The Goliath LED floodlight range is our most powerful luminaire. Perfect for large outdoor areas, it will provide optimal lighting for your sports activities. With different power outputs ranging from 600 to 1800W and a luminous efficacy of 140lm/W, you’ll find the perfect combination of floodlights, guaranteeing uniform lighting and ideal visual comfort.
| Typical reference | GOLxxx | Materials | Aluminum / Polycarbonate / Tempered glass |
| Light efficiency | 140 lm/W | LED type | SMD |
| Color temperature | 5 000k (3 000K, 4 000K optional) | Driver | Direct Current |
| Color rendering Ra | Ra > 80 | Dimmable | 1-10V / DALI / DMX |
| Voltage / Frequency | AC220-240V / 50-60Hz | Maximum dimming | from 100 to 10% |
| Power Factor | 0.95 | Optical type | Symmetrical and Asymmetrical |
| UGR | UGR < 22 | Adapt for TV | Flicker Free Driver |
| Biological Risk | RG1 | Color Projector | Black |
| ULR | < 3% | Standards | IP66 / IK10 / CE / RoHS / ENEC |
| Harmonic Distortion | < 20% | Warranty | 5 years |
High power
Remote power supply
Controllable
Various optics
Digital adjustment via bracket
Integrated 10kV protection
General characteristics of the Goliath Speqtris Sport range
A floodlight designed for large sports fields (football, rugby, motor racing, field hockey, etc.) and equipped with a light output of 160 lm/W. The Goliath 2 range is perfectly suited to any size of field.
| Typical reference | GOLxxx | Materials | Aluminum / Polycarbonate / Tempered glass |
| Light efficiency | 140 lm/W | LED type | SMD |
| Color temperature | 5 000k (3 000K, 4 000K optional) | Driver | Direct Current |
| Color rendering Ra | Ra > 80 | Dimmable | 1-10V / DALI / DMX |
| Voltage / Frequency | AC220-240V / 50-60Hz | Maximum dimming | from 100 to 10% |
| Power Factor | 0.95 | Optical type | Symmetrical and Asymmetrical |
| UGR | UGR < 22 | Adapt for TV | Flicker Free Driver |
| Biological Risk | RG1 | Color Projector | Black |
| ULR | < 3% | Standards | IP66 / IK10 / CE / RoHS / ENEC |
| Harmonic Distortion | < 20% | Warranty | 5 years |
The Goliath range is made up of : several projectors with power of 600W / 1000W / 1200W / 1500W or 1800W in order to adapt the light to the use and the rendering needs.
With its luminous flux of 160 lm/W and its 5 different powers, the Goliath 2 projectors can illuminate all large outdoor areas as well as interior buildings.
| 600W | 960W | 1 200W | 1 500W | 1 800W | |
| Dimensions | 283 x 479 x 185mm | 527 x 510 x 298mm | 560 x 510 x 298mm | 777 x 515 x 310mm | 833 x 515 x 310mm |
| Weight | 12.5kg | 29kg | 29kg | 35.1kg | 38.4kg |
| Luminous flux | 84 000 Lumens | 134 400 Lumens | 168 000 Lumens | 210 000 Lumens | 252 000 Lumens |
The diffusion optics of the Goliath Speqtris Sport range
The choice of optics depends primarily on the luminaire’s initial positioning, its height, and the area to be illuminated. Our sales engineers will be able to provide valuable advice for your project.
Goliath Speqtris Sport Projector Durability
The durability of the luminaires is also due to the annual maintenance that is done on them.
| Lifespan | at 25°C | at 30°C | at 45°C |
| L70 | 326 000h | 300 000h | 287 000h |
| L80 | 197 000h | 175 000h | 162 000h |
| L90 | 82 000h | 80 000h | 78 000h |
Wind grip (SCX) from the Goliath Speqtris Sport range
Please note that wind resistance coefficients are linked to the inclination and orientation of the projector in its installation. We give here the minimum inclinations (flat inclination 0°) or maximum (raised to 90°). Our teams will be able to give you the precise SCX according to the photometric study of your lighting project.
| Tilt | 600W | 960W / 1 200W | 1 500W | 1 800W |
| 0° | 0.02 | 0.03 | 0.03 | 0.03 |
| 10° | 0.04 | 0.07 | 0.08 | 0.09 |
| 30° | 0.07 | 0.15 | 0.19 | 0.22 |
| 50° | 0.10 | 0.21 | 0.28 | 0.32 |
| 70° | 0.12 | 0.25 | 0.33 | 0.38 |
| 90° | 0.12 | 0.26 | 0.34 | 0.40 |
The CCTP (Special Technical Specifications) is a necessary document for any public procurement contract. It helps determine the buyer’s needs. Depending on the area you need to illuminate and the lighting standards to be met, you will need to include the spotlight(s) recommended for the installation.
Brand : Speqtris Sport from StopLED
Model : Goliath Projector
Power : 600W
Product sheet summary : Goliath LED projector from the Speqtris Sport brand from StopLED – Class 1 – Luminous flux 140 lm/W – Biological risk RG1 – IP66 – IK10 – Dimmable projector DALI / DMX / 1-10V – Materials Aluminum / Polycarbonate / Tempered glass – Remote driver up to 50m (200m optional) – 5-year warranty
Mechanical characteristics : IP66 – IK10 – RG1 – Black or silver color – Adjustable projector – Vapor barrier on LED modules – Adjustable bracket with digital angle marking
Light characteristics : LED projector – 140 lm/W – 84,000 Lumens – Durability 197,000h (L80 Ta25°) – Dimmable lighting Dali / DMX / 1-10V – 10KV electrical protection included
Brand : Speqtris Sport from StopLED
Model : Goliath Projector
Power : 960W
Product sheet summary : Goliath LED projector from the Speqtris Sport brand from StopLED – Class 1 – Luminous flux 140 lm/W – Biological risk RG1 – IP66 – IK10 – Dimmable projector DALI / DMX / 1-10V – Materials Aluminum / Polycarbonate / Tempered glass – Remote driver up to 50m (200m optional) – 5-year warranty
Mechanical characteristics : IP66 – IK10 – RG1 – Black or silver color – Adjustable projector – Vapor barrier on LED modules – Adjustable bracket with digital angle marking
Light characteristics : LED projector – 140 lm/W – 134,400 Lumens – Durability 197,000h (L80 Ta25°) – Dimmable lighting Dali / DMX / 1-10V – 10KV electrical protection included
Brand : Speqtris Sport from StopLED
Model : Goliath Projector
Power : 1200W
Product sheet summary : Goliath LED projector from the Speqtris Sport brand from StopLED – Class 1 – Luminous flux 140 lm/W – Biological risk RG1 – IP66 – IK10 – Dimmable projector DALI / DMX / 1-10V – Materials Aluminum / Polycarbonate / Tempered glass – Remote driver up to 50m (200m optional) – 5-year warranty
Mechanical characteristics : IP66 – IK10 – RG1 – Black or silver color – Adjustable projector – Vapor barrier on LED modules – Adjustable bracket with digital angle marking
Light characteristics : LED projector – 140 lm/W – 168,000 Lumens – Durability 197,000h (L80 Ta25°) – Dimmable lighting Dali / DMX / 1-10V – 10KV electrical protection included
Brand : Speqtris Sport from StopLED
Model : Goliath Projector
Power : 1500W
Product sheet summary : Goliath LED projector from the Speqtris Sport brand from StopLED – Class 1 – Luminous flux 140 lm/W – Biological risk RG1 – IP66 – IK10 – Dimmable projector DALI / DMX / 1-10V – Materials Aluminum / Polycarbonate / Tempered glass – Remote driver up to 50m (200m optional) – 5-year warranty
Mechanical characteristics : IP66 – IK10 – RG1 – Black or silver color – Adjustable projector – Vapor barrier on LED modules – Adjustable bracket with digital angle marking
Light characteristics : LED projector – 140 lm/W – 210,000 Lumens – Durability 197,000h (L80 Ta25°) – Dimmable lighting Dali / DMX / 1-10V – 10KV electrical protection included
Brand : Speqtris Sport from StopLED
Model : Goliath Projector
Power : 1800W
Product sheet summary : Goliath LED projector from the Speqtris Sport brand from StopLED – Class 1 – Luminous flux 140 lm/W – Biological risk RG1 – IP66 – IK10 – Dimmable projector DALI / DMX / 1-10V – Materials Aluminum / Polycarbonate / Tempered glass – Remote driver up to 50m (200m optional) – 5-year warranty
Mechanical characteristics : IP66 – IK10 – RG1 – Black or silver color – Adjustable projector – Vapor barrier on LED modules – Adjustable bracket with digital angle marking
Light characteristics : LED projector – 140 lm/W – 252,000 Lumens – Durability 197,000h (L80 Ta25°) – Dimmable lighting Dali / DMX / 1-10V – 10KV electrical protection included
Brand : Speqtris Sport from StopLED
Model : Goliath Projector
Powers : 600W / 960W / 1200W / 1500W / 1800W
Product sheet summary : Goliath LED projector from the Speqtris Sport brand from StopLED – Class 1 – Luminous flux 140 lm/W – Biological risk RG1 – IP66 – IK10 – Dimmable projector DALI / DMX / 1-10V – Materials Aluminum / Polycarbonate / Tempered glass – Remote driver up to 50m (200m optional) – 5-year warranty
Mechanical characteristics : IP66 – IK10 – RG1 – Black or silver color – Adjustable projector – Vapor barrier on LED modules – Adjustable bracket with digital angle marking
Light characteristics : LED projector – 140 lm/W – Durability 197,000h (L80 Ta25°) – Dimmable lighting Dali / DMX / 1-10V – 10KV electrical protection included
